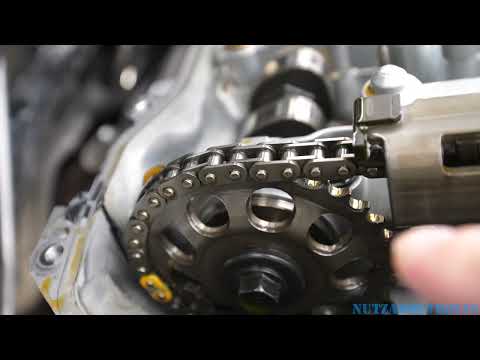

I'm doing a timing cover reseal on this 2012 Toyota Prius where there was a seepage after checking it after 10k from doing the head gasket job. This spot leaks because there was not enough FIPG on the timing cover at that exact spot. This spot can commonly leak due to age as well, but this time, it was because I didn't put enough FIPG around that spot, so this time, I resealed it and will recheck in another 10k miles.
Tools: http://amzn.to/2awbSn5 Drain pan https://amzn.to/3GMhHlc Rags http://amzn.to/2bpta6z Toyota 50/50 super long life coolant http://amzn.to/2aE11KN Brake 3M anti seize http://amzn.to/2aCVoJz Brake 3M silicone paste http://amzn.to/2b5169E Brake clean http://amzn.to/2aCXN73 Lisle 24680 Spill-Free Funnel https://amzn.to/4kSgNSb Vice grip plier set https://amzn.to/3PmiPg3 Hook and Pick Set http://amzn.to/2b7l0V7 Metal Pry bar set https://amzn.to/2wvf2nN razor blade scrapper set https://amzn.to/3IAjLx8 Magnetic Pickup Tool https://amzn.to/3GVzvu7 Scrub brush https://amzn.to/4m9fnnr Carb cleaner https://amzn.to/44UZMAH Mechanic wires http://amzn.to/2awfJAB 1/2 Impact gun/wrench https://amzn.to/3N6JIUe 25" 1/2 Flex Ratachet https://amzn.to/4m76jiW 3/8 Flex Ratchet https://amzn.to/4gUlHN2 1/4 Ratchet http://amzn.to/2aDZqER 3/8 Torque wrench https://amzn.to/4dekyAM 1/2 torque stick set http://amzn.to/2awjjur 19mm wrench http://amzn.to/2awd9dO 3/8 1,3,6,10" extension set https://amzn.to/4eUT2r3 1/2 18,24,30" Super extended set https://amzn.to/46NDKSX Adapter sets https://amzn.to/2PsTmB6 Flat head screw driver http://amzn.to/2aSOq6i 1/4 10mm socket https://amzn.to/3GTpr4I 1/4 12mm socket https://amzn.to/3GUmZLh 3/8 5mm socket http://amzn.to/2awd6P5 3/8 10mm socket http://amzn.to/2aCThW4 3/8 12mm socket http://amzn.to/2awcY1Z 3/8 14mm socket http://amzn.to/2b0vAfI 3/8 17mm socket http://amzn.to/2axsT0k 1/2 10mm short socket http://amzn.to/2b528T0 1/2 12mm short socket http://amzn.to/2b1rS5B 1/2 10mm deep socket http://amzn.to/2bcOBIZ 1/2 12mm deep socket http://amzn.to/2aEZ5Vb 1/2 17mm deep socket http://amzn.to/2aY8Mfm 1/2 19mm deep socket
Parts: https://amzn.to/4m9fcsh Toyota FIPG
Torque specs: Wiper cowl assembly 6 ft. lbs - Wiper motor mount bolts 9 ft. lbs - Cowl sub assembly bolts 10 ft. lbs - Wiper arms nuts
Intake Manifold 7 ft. lbs - MAP sensor bolt 7 ft. lbs - Throttle body nuts and bolts 15 ft. lbs - Purge valve bracket bolt 21 ft. lbs - intake manifold nuts and bolts
EGR and EGR Cooler 7 ft. lbs - EGR bolt bracket 7 ft. lbs - EGR pipe to intake manifold bolts
Valve Cover 7 ft. lbs - 10mm bolts 7 ft. lbs - 3 ground wire bolts 7 ft. lbs - rear bracket bolt
Camshaft housing 12 ft. lbs - Black bolts 20 ft. lbs - Gold bolts
Timing chain tensioner 9 ft. lbs - 10mm nuts
Timing chain cover 7 ft. lbs - 10mm bolt 19 ft. lbs - 12mm bolts (oil filter housing bolts) 38 ft. lbs - 14mm bolts
Waterpump 15 ft. lbs - short bolts 19 ft. lbs - Long bolts
Engine mount 7 ft. lbs - AC line bracket to engine mount 7 ft. lbs - 8mm stud 38 ft. lbs - bracket to cylinder head 38 ft. lbs - 14mm nut 70 ft. lbs - 17mm bolts 70 ft. lbs - 17mm nut
Wireharness 7 ft. lbs - bolt to top of valve cover 15 ft. lbs - top bolt to the valve cover
7 ft. lbs - Airbox bolts 7 ft. lbs - Ignition coil bolts 7 ft. lbs - Thermostat nuts and bolt 7 ft. lbs - AC line bracket bolts 7 ft. lbs - Coolant Reservoir bolts 7 ft. lbs - Negative cable battery nut 13 ft. lbs - Oil drain plug 13 ft. lbs - Spark plugs 15 ft. lbs - Oil dipstick bolt 80 ft. lbs - Wheel lug nuts 140 ft. lbs - Crank bolt
