Ed van den Berg

Stirling engine Car 2

Video | 7 months ago

Ik heb Car 1 verkocht en had daarom een reden om Car 2 te gaan maken was weer een mooi project.

Stirling engine The Prinsses

Video | 1 years ago

Stirling Engine Rider Ericsson Mini

Video | 2 years ago

In 1994 I built the Rider Ericsson and it still works fine. Now thirty years later I think I'll make it again but half the size. All details are in the movie

Stirling engine Van Rennes

Video | 2 years ago

I already built this Van Rennes 20 years ago, and now I thought I would rebuild it because I had sold the previous one. In this version I changed a few things and installed a cooling system. all other details are in the film. Greetings Ed van den Berg

The Pucky

Video | 3 years ago

I built the Pucky from drawings, but with some changes. my flywheel is bigger and the main bearings are bigger. I put small bearings (4x2x1.5 mm) in the three top hinge points. I made the displacer cylinder from stainless steel instead of glass.

Stirling engine The Generator

Video | 3 years ago

The generator was designed by myself, I wanted something with lighting and that worked out pretty well. The compression piston is 30 mm and the displacement piston is 28 mm and the piston stroke is 26 mm, the flywheel is 150 mm in size. the generator provid...

Vacuum Engine The General

Video | 4 years ago

I built the General from drawings I bought in Germany. I have made several changes in the execution and use of materials. The diameter of the piston is 30 mm and the stroke of the piston is 68 mm. There should actually be a water cooling on it but this engi...

Stirling engine The Roxy

Video | 4 years ago

I built the Roxy from drawing bought in Germany. I have changed a few things according to my own insight in material and execution. The power piston is 30 mm and is made of bronze, the cylinder is made of steel, and the piston stroke is 38 mm. The displacer...

Stirling engine Rider Ericsson

Video | 5 years ago

I built the Rider in 1994, it ran on gas, but that was always difficult because you always have to bring a gas bottle to a demonstration. That is why I decided to convert it to Bio ethanol. It just takes a little longer to warm up, but otherwise it runs per...

The Water Pump

Video | 5 years ago

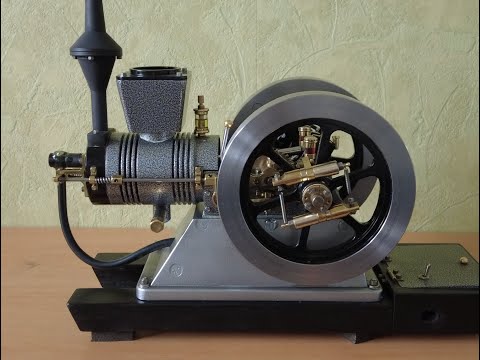

Hit en Mis Engine The Queen

Short | 5 years ago

I have the Queen Built part of a drawing and my own input. I do not use water cooling because it does not get too hot with a short run time. If it should run longer, water cooling is recommended

Stirling engine ST-02

Video | 6 years ago

The ST-02 was built in 1992 from drawings and is now a movie
